Even ISOLATED Splitters

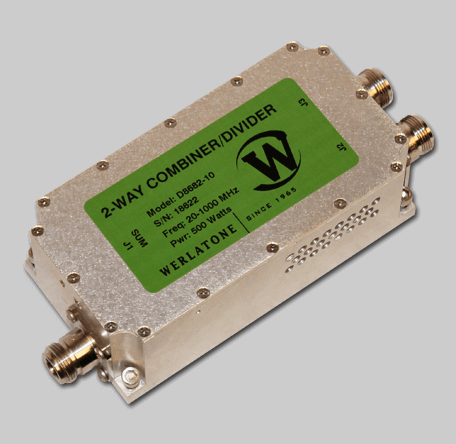

RF Combiner - Model D8682 - 2-Way Combiner/Divider

Even ISOLATED Splitters

For broadband Combining / Dividing applications where port-to-port isolation is required, Werlatone provides 2-Way, 4-Way, and N-Way even isolated Combiners / Splitters. Where specified, we design our Combiners to tolerate full input failures on adjacent port(s). This insures that remaining transmitter(s) may continue to operate until the amplifier system can be properly shut down for maintenance (See Schematics A & B).

A Few of our Even ISOLATED Splitters

Model
Type
Split
Frequency (MHz)
Power (Watts CW)
Insertion Loss (dB)
Isolation (dB)
D7365

4-Way
Even
20 – 1000
100
0.75
20
D5906

4-Way
Even
470 – 860
500
0.4
18
D6748

4-Way
Even
470 – 860
250
0.35
18
D9075

4-Way
Even
20 – 1000
1000
0.65
15
D9048

4-Way
Even
20 – 1000
500
0.6
17
D1969

4-Way
Even
100 – 1000
100
0.6
20
D7142

2-Way
Even
100 – 500
100
0.40
20
D8544W

2-Way
Even
20 – 1000
100
0.5
18
D8300

2-Way
Even
20 – 1000
100
0.5
20
D8682

2-Way
Even
20 – 1000
500
0.7
15
